Step 2 Circuit Cloning

We can understand better from the following diagram. Now the decade binary counter counts the number of pulses fed at the clock and lets the corresponding pin output go high. At the top of the picture you see a place for a voltage regulator. So I take the soldering iron and touch it on the excess copper and peal it up off the board.

In first case we can take black and white for a common ground or power. It is well explained and helpful. These have two coils and are controlled by changing the direction of the current flow through the coils in the proper sequence. Use what you think is best for your stepper motors.

That part of the work was super easy to complete. This leaves some areas of the board that are not associated with a path still covered with copper. Hence, this coil will be energized and turns in to an electromagnet. Add the other components as shown on the overlay.

You need to look over the schematic to see where some of the parts go but it's all there. You will need to build two of these if you are also building a heliostat or sun tracking machine, one for the altitude rotation and another for the azimuth rotation. Connect the wires to the terminal block Apply power.

Stepper Motor Driver

The two center-taps need to be commoned externally. Use the cutoff lengths from the resistors for the links. Now consider, for an example, all coils are magnetized at a time. Leave a Reply Cancel reply Your email address will not be published. The output waveforms can be both amplitude and frequency modulated.

Now everybody wants to know what the light bulb is for. Very well explained and congratulations. This is exactly what I used, but it is, of course, possible to substitute slightly different parts for everything. This will energize the coil and acts as an electromagnet. And so if the pot is adjusted to increase the resistance in the branch the frequency of clock decreases.

It should rotate the first stepper motor one full revolution in each direction and then do the same with the second stepper motor. The following image shows a Bipolar Stepper Motor with its winding.

DIY Arduino Stepper Motor Driver Board Cerebral Meltdown

Here is the parts list for the driver board. Any way look over the schematic and place the parts accordingly.

Easy to Build CNC Mill Stepper Motor and Driver Circuits

Watch the video in the next step. This way you can easly correct any mistakes and try different things.

Driver is a circuit that applies a voltage to any of the four stator coils. As a result, the supply from the common wire goes through point A to ground. You can see how the protoboard has been cut down to size here. This will further rotate the rotor. This way one can adjust the circuit to drive ten step stepper motor.

Can you provide me with the schematic thank you. You can use that or you can put a resistor and Zener Diode in its place like the schematic shows. Something to keep in mind if you were to try and modify the schematic for smaller stepper motors.

It is an irreplaceable tool for troubleshooting and repairing electronic equipment by determining performance and health of electrolytic capacitors. Now you can use this as a probe to see where you have voltage.

DIY Arduino Stepper Motor Driver Board Cerebral MeltdownStepper motor circuits

Stepper motor driver schematic

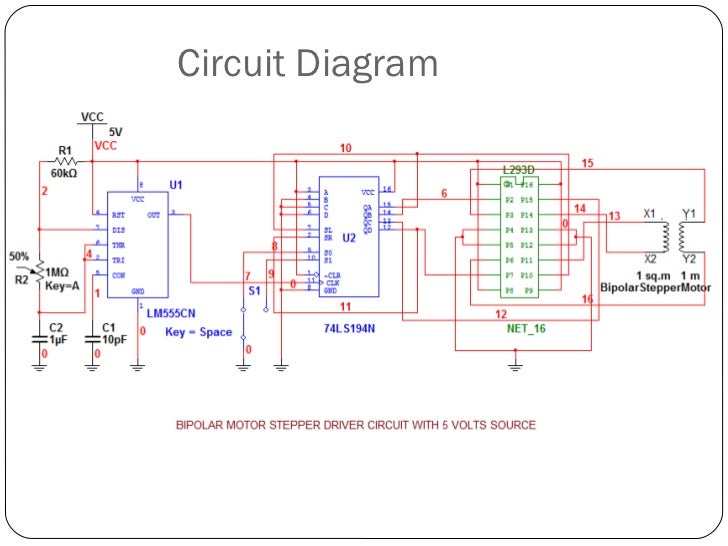

Stepper Motor Driver Circuit Diagram and Explanation The figure shows the circuit diagram of two stage stepper motor driver. The Internet is where to get all the explanation about steppers. The figure shows the circuit diagram of two stage stepper motor driver. See if the motor is turning. For each driver board you build, flatron w1943se drivers you will need four of each of the items listed below.
